VBA to Draw Lines and Boxes on an Access Report

Draw on Access reports! Use the VBA Line method to draw lines and boxes. Draw in a detail event to visualize data on each record, and to conditionally draw a border around the section. Draw in Page event for page border and dividing lines.

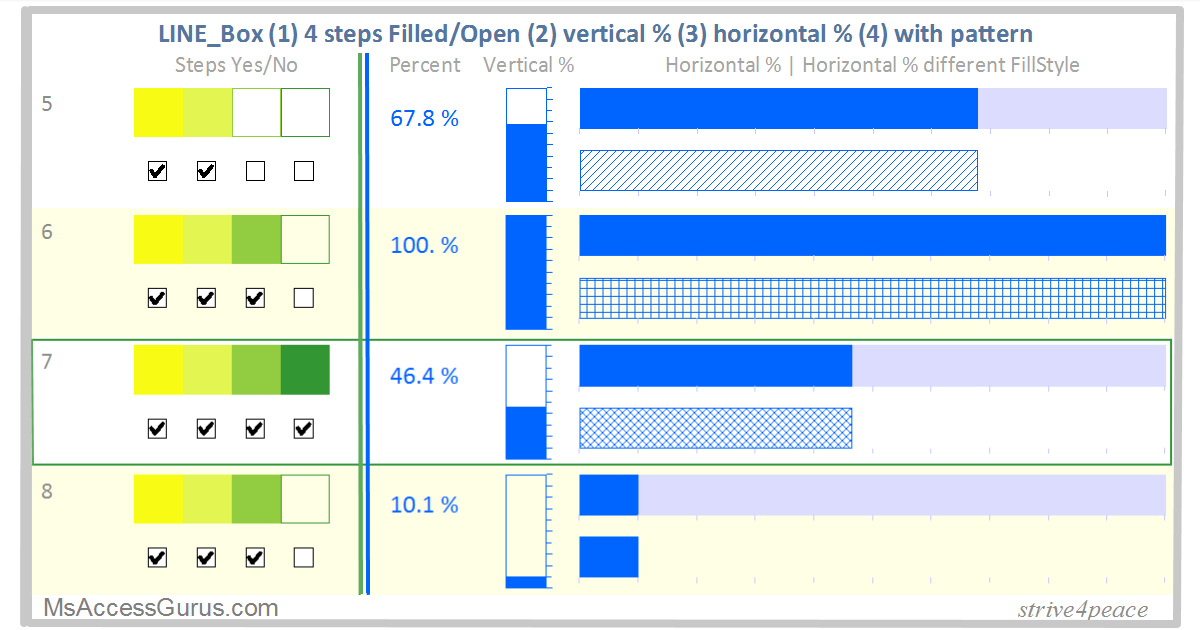

Lines and Boxes drawn on an Access report

Quick Jump

VBA

Goto Top


Download

Download: ReportDraw_LINE_Box_s4p__ACCDB.zip

If you have trouble with the download, you may need to remove Mark of the Web from the ZIP file before extracting. Here are steps to do that: https://msaccessgurus.com/MOTW_Unblock.htm

Report Menu

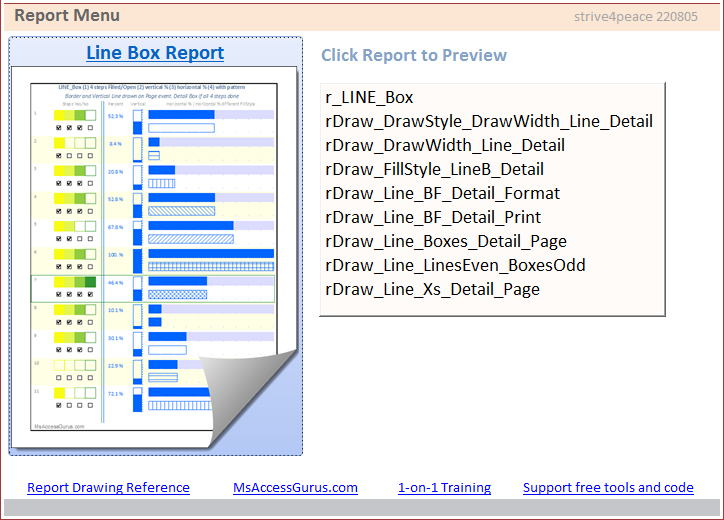

The download ACCDB database has a report to draw Line and Box examples as shown above. There are also several sample reports to demonstrate various property settings and techniques.

Menu for drawing lines on reports

Goto Top

Report Detail, Print Preview

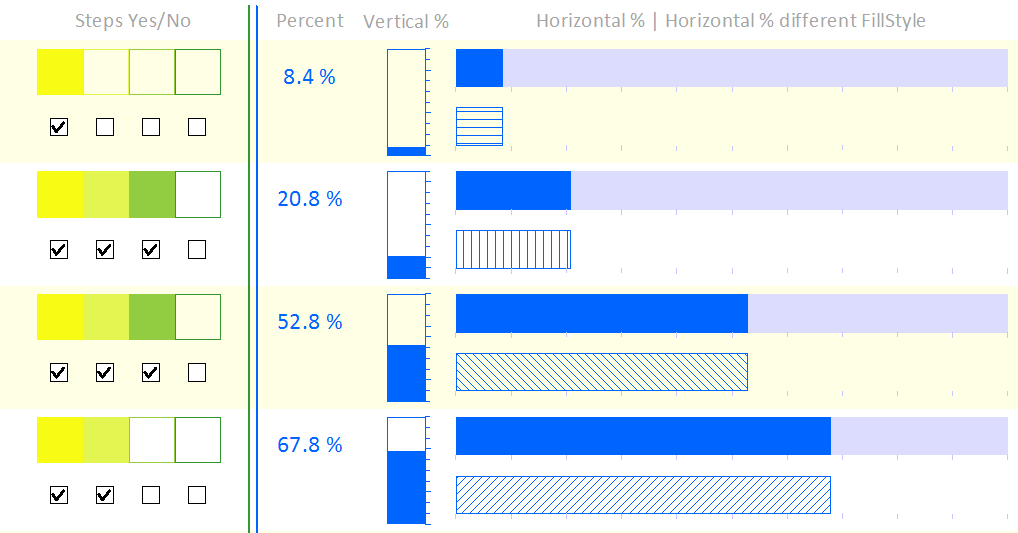

Here is the detail for 4 records on an Access report. The first 4 boxes indicate if steps of a process are done. Colors are graded from yellow to green.

The percentage metric is then shown in a vertical column or horizontal bars. Tick marks are drawn every 10% so the marker is easier to read. The lower horizontal bar varies the FillStyle property.

4 records showing Line and Box drawings

Goto Top

Report Page

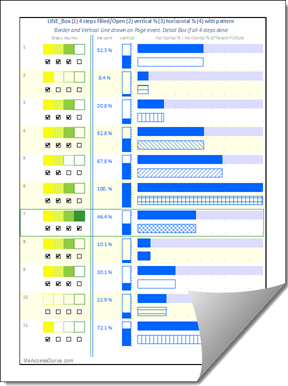

A border box is drawn around every page, and 2 vertical lines are drawn to separate the drawing types.

Access report showing Page Border and Vertical Lines

Goto Top

Design View of Report

Here is the design view of the report. Label controls are used to define where lines will be drawn. They aren't necessary but its easier to visualize where the boxes will be. Change the size and position of each drawing by changing each respective control.

design view shows labels that define box boundaries

Goto Top

Syntax

Line syntax

Draw a line or rectangle. A rectangle (box) has B or BF specified.

Report.Line (Step (x1, y1) - Step (x2, y2), Color, BF)

Line information and parameters

Goto Top

VBA behind the report

Since colors are used on every record, their Long Integer RGB values are defined in the ReportHeader_Format event. Open and Filled Boxes use these colors on each record in the Detail_Format event.

Order of Events

Option Compare Database
Option Explicit
' Draw Lines and Boxes on reports
'*************** Code Start *****************************************************
' code behind report: r_LINE_Box
'(1-4) Filled/Open
'(5) vertical % (6) horizontal % (7) horizontal % pattern
' Report Draw Reference:
'  https://msaccessgurus.com/VBA/ReportDraw_Reference.htm
' VBA and download this database:
'  https://msaccessgurus.com/VBA/Draw_Line_Box.htm
'-------------------------------------------------------------------------------
' Purpose  : draw using the Line method
'            page border and lines in Page event
'            Examples for data in Detail
'            detail border if condition is true
' Author   : crystal (strive4peace)
' Code List: www.msaccessgurus.com/code.htm
'-------------------------------------------------------------------------------
' LICENSE
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Use at your own risk.
'-------------------------------------------------------------------------------
'-------------------------------------------------------------------------------
'           Module variables for Color
'-------------------------------------------------------------------------------
Private Const mnColorBLUE As Long = 16737280 _
   ,mnColorBlack As Long = 0

Private mnColorStep(1 To 4) As Long

'-------------------------------------------------------------------------------
'           ReportHeader_Format
'-------------------------------------------------------------------------------
Private Sub ReportHeader_Format(Cancel As Integer,FormatCount As Integer)
   'define colors
   mnColorStep(1) = RGB(248,252,20)  'yellow-green     '
   mnColorStep(2) = RGB(226,245,81)  'green-yellow
   mnColorStep(3) = RGB(146,204,65)  'medium green
   mnColorStep(4) = RGB(50,150,50)   'dark green
End Sub

Goto Top

Borders and Vertical Lines on Page

'-------------------------------------------------------------------------------
'           Report_Page
'-------------------------------------------------------------------------------
Private Sub Report_Page()
'220802, ...05
   Call DrawBorder(Me _
         ,4 _
         ,RGB(200,200,200) _
         ,30)
   '1440 twips per inch
   With Me
      Call DrawVerticalLine(Me _
         ,(2.05 * InchToTWIP) _
         ,4 _
         ,mnColorStep(4) _
         ,.LabelHeading_Steps.Top _
         ,.PageFooterSection.Height)

      Call DrawVerticalLine(Me _
         ,(2.1 * InchToTWIP) _
         ,4 _
         ,mnColorBLUE _
         ,.LabelHeading_Steps.Top _
         ,.PageFooterSection.Height)
   End With
End Sub

Goto Top

'-------------------------------------------------------------------------------
'           Detail_Format
'-------------------------------------------------------------------------------
Private Sub Detail_Format( _
   Cancel As Integer _
   ,FormatCount As Integer _
   )
'draw with LINE
' use (Label) controls for boundaries
'220802,... 05 strive4peace2

   Dim x1 As Single,y1 As Single _
      ,x2 As Single,y2 As Single _
      ,x As Single _
      ,y As Single _
      ,sgPercent As Single

   Dim sControlname As String _
      ,i As Integer

   With Me
      '-----------  set up drawing space
      .ScaleMode = 1  'twips, default
      .DrawWidth = 1  'pixel

Goto Top

1 the first step is done 2 the first two steps are done 3 the first three steps are done 4 all steps are done

      ' ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ FilledOpen YesNo Steps
      '----------- Label_YesNo1,2,3,4 and vYesNo1,2,3,4
      For i = 1 To 4

         'control for size and position
         sControlname =  "Label_YesNo" & Format(i, "0")
         With .Controls(sControlname)
            'get control coordinates for size of box
            x1 = .Left
            y1 = .Top
            x2 = .Left + .Width
            y2 = .Top + .Height
         End With

         'control with value
         sControlname =  "vYesNo" & Format(i, "0")

         'draw filled box if True, open box if False
         If .Controls(sControlname) <> 0 Then  'True
            .FillStyle = 0  'opaque
            .FillColor = mnColorStep(i)
         Else  'False
            .FillStyle = 1  'transparent
         End If

         '----- draw a box
         Me.Line (x1,y1)-(x2,y2),mnColorStep(i),B
      Next i

Goto Top

vertical column to show percent


      '================================================ Percent
      sgPercent = Nz(.vPercent,0)

      ' ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Label_Vertical

      '----------- Label_Vertical
      'vertical column percent

      With .Label_Vertical

         x1 = .Left
         y1 = .Top

         x2 = .Left + .Width
         y2 = .Top + .Height
         y = y1 + (y2 - y1) * (1 - sgPercent)    '(.Height * (1 - sgPercent))
      End With

      If sgPercent > 0 Then
         .FillStyle = 0  'opaque
         '----- draw filled box
         Me.Line (x1,y)-(x2,y2),mnColorBLUE,BF
      End If

      .FillStyle = 1  'transparent

      '----- draw open box around everything
      Me.Line (x1,y1)-(x2,y2),mnColorBLUE,B

      '----- draw tick marks every 10
      x1 = x2
      x2 = x1 + 50  'tick width should be calculated

      .DrawWidth = 1

      For i = 0 To 10
         y = y1 + i * (y2 - y1) / 10
         Me.Line (x1,y)-(x2,y),mnColorBLUE
      Next i

Goto Top

horizontal bar to show percent

      ' ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Label_Horizontal
      '----------- Label_Horizontal
      'horizontal bar
      'empty color solid first

      With .Label_Horizontal
         x1 = .Left
         x2 = .Left + .Width
         y1 = .Top
         y2 = .Top + .Height
         x = x1 + (x2 - x1) * sgPercent
      End With

      .FillStyle = 0  'opaque
      '----- draw light blue filled box behind everything
      Me.Line (x1,y1)-(x2,y2),RGB(220,220,255),BF

      If sgPercent > 0 Then
         '----- draw filled box for value
         Me.Line (x1,y1)-(x,y2),mnColorBLUE,BF
      End If

      '----- draw tick marks every 10 under bar chart
      y1 = y2
      y2 = y1 + 50  'tick length should be calculated

      .DrawWidth = 1

      For i = 0 To 10
         x = x1 + i * (x2 - x1) / 10
         If i = 10 Then x = x - 10  'adjust for DrawWidth

         Me.Line (x,y1)-(x,y2),RGB(200,200,255)
      Next i

Goto Top

different FillStyle in horizontal bar to show percent


      ' ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Label_HorizontalPattern
      '----------- Label_HorizontalPattern
      'horizontal bar
      'pattern

      With .Label_HorizontalPattern
         x1 = .Left
         x2 = .Left + .Width
         y1 = .Top
         y2 = .Top + .Height
         x = x1 + (x2 - x1) * sgPercent
      End With

      .FillStyle = .Num Mod 8   '0=opaque to 7
      .FillColor = mnColorBLUE

      If sgPercent > 0 Then
         '----- draw box for value
         Me.Line (x1,y1)-(x,y2),mnColorBLUE,B
      End If

      '----- draw tick marks every 10 under bar chart
      y1 = y2
      y2 = y1 + 50  'tick length should be calculated

      .DrawWidth = 1

      For i = 0 To 10
         x = x1 + i * (x2 - x1) / 10
         If i = 10 Then x = x - 10  'adjust for DrawWidth

         Me.Line (x,y1)-(x,y2),RGB(200,200,255)
      Next i

Goto Top

conditionally draw border around detail section

      '================================================ Border Box
      ' draw box around detail section if all checkboxes are true
      ' currently this is vYesNo4 -- last one in the loop
      If .Controls(sControlname) <> 0 Then  'all True
         'box around detail. 4px= Line width, 80 twip margins
        Call DrawBorder(Me,4,mnColorStep(4),80)
      End If

      ' ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

   End With  'Me
End Sub
'*************** Code End *******************************************************

Goto Top

Standard Module: mod_Draw_Border_Lines

Option Compare Database
Option Explicit

'*************** Code Start *****************************************************
' module: mod_Draw_Border_Lines
' Reference for drawing on reports:
'  https://msaccessgurus.com/VBA/ReportDraw_Reference.htm
' VBA and download with this example:
'  https://msaccessgurus.com/VBA/Draw_Line_Box.htm
'-------------------------------------------------------------------------------
' Purpose  : draw a border or lines on a report.
'               if called on page event, draw on page
'               if called in section, draw in section
' Author   : crystal (strive4peace)
' Code List: www.msaccessgurus.com/code.htm
'-------------------------------------------------------------------------------
' LICENSE
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Use at your own risk.
'-------------------------------------------------------------------------------
'           Public
'-------------------------------------------------------------------------------
Public Const InchToTWIP As Single = 1440

'-------------------------------------------------------------------------------
'           DrawBorder
'-------------------------------------------------------------------------------
Public Sub DrawBorder(poReport As Report _
   ,Optional piDrawWidth As Integer = 2 _
   ,Optional pnColor As Long = 0 _
   ,Optional pTwipMargin As Single = 40 _
   )
'220801 strive4peace
   'CALL from Report Page event
   '     or conditionally from section event
   '  1440 * 0.25 = 360

   'PARAMETERS
   '  poReport is the report object
   '  piDrawWidth is the line width in pixels
   '  pnColor is the line color
   '  pTwipMargin is the same margin for each dimension

   Dim x1 As Single,y1 As Single _
      ,x2 As Single,y2 As Single

   With poReport  'Report

      '-----------  set up drawing space
      .ScaleMode = 1  'twips, default
      .DrawWidth = piDrawWidth  'line width
      .FillStyle = 1  'transparent

      x1 = .ScaleLeft + pTwipMargin
      y1 = .ScaleTop + pTwipMargin
      x2 = .ScaleLeft + .ScaleWidth - pTwipMargin
      y2 = .ScaleTop + .ScaleHeight - pTwipMargin

   End With  'report

   'draw a box
   poReport.Line (x1,y1)-(x2,y2),pnColor,B

End Sub

'-------------------------------------------------------------------------------
'           DrawVerticalLine
'-------------------------------------------------------------------------------
Public Sub DrawVerticalLine(poReport As Report _
   ,pX As Single _
   ,Optional piDrawWidth As Integer = 1 _
   ,Optional pnColor As Long = 0 _
   ,Optional pYtopTwip As Single = 720 _
   ,Optional pYbottomTwip As Single = 360 _
   )
'220801 strive4peace
   'usually CALL from Report Page event
   'RGB(150, 150, 150) = 9868950
   'defaults: 1440/2=720 top margin 1/2", bottom 1/4"

   Dim y1 As Single,y2 As Single

   With poReport  'Report

      '-----------  set up drawing space
      .ScaleMode = 1  'twips, default
      .DrawWidth = piDrawWidth
      .FillStyle = 1  'transparent

      y1 = .ScaleTop + pYtopTwip
      y2 = .ScaleTop + .ScaleHeight - pYbottomTwip
   End With  'report

   'draw a line
   poReport.Line (pX,y1)-(pX,y2),pnColor

End Sub
'*************** Code End *******************************************************
' Code was generated with colors using the free Color Code add-in for Access.

Goto Top

Reference

Drawing Reference on MsAccessGurus

Big Report Draw REFERENCE for VBA syntax and help for drawing on Access reports.

Line syntax and parameters

ScaleMode property

ScaleLeft property

ScaleTop property

ScaleWidth property

ScaleHeight property

DrawWidth property

FillStyle property

FillColor property

Goto Top

Backstory

This page continues from VBA to Draw Circles on Reports

Now you've seen VBA examples for circles and lines, next, we'll combine Circle and Line to draw more complex shapes, and maybe use the Print method to write text too.
