Draw the Moon in Access

Draw moons in any phase on your Access reports! VBA procedure that's easy to call from code behind your reports. Access is only limited by your imagination.

Send the report object, coordinate for the center and radius for the Moon. Optionally, you can choose colors, fraction covered in light, and waxing or waning.

The code that does the drawing is all in one module that you can easily import into your projects. The Moon uses the Circle method.

Show the Moon on an Access report

Quick Jump

Goto Top


Download

Download zipped BAS file you can import into your Access projects: bas_Draw_Moon_s4p.zip

Download zipped ACCDB file with sample data, a module, and sample reports: Draw_Moon_s4p_230214__ACCDB.zip

Remember to UNBLOCK files you download to remove the Mark of the Web. Here are steps to do that: https://msaccessgurus.com/MOTW_Unblock.htm

Goto Top

Try it yourself

There are several sample reports you can play around with

Goto Top

Video

watch on YouTube: Draw the Moon on Access Reports using VBA (0:29)

Goto Top

VBA

Standard module

Specify report object, location and size, and optionally, fraction lit, waxing or waning, and colors.

' module name: bas_Draw_Moon_s4p
'*************** Code Start ***************************************************
' Purpose  : draw the Moon on an Access report in any phase
'             specify report object, center coordinate and radius
'             optionally set colors, fraction lit,
'             and if moon is waxing or waning
'           USES Circle
' Author   : crystal (strive4peace)
' Code List: www.msaccessgurus.com/code.htm
' This code: https://msaccessgurus.com/VBA/Draw_Moon.htm
' LICENSE  :
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Mark your changes. Use at your own risk.
'------------------------------------------------------------------------------
'           Global variables
'------------------------------------------------------------------------------
Public Const PI As Double = 3.14159
Public Const gZero As Double = 0.0000001
Public Const TWIPperINCH As Long = 1440

Public Const gColorGrayVeryLight As Long = 16448250  'RGB(250, 250, 250)
Public Const gColorGray As Long = 11513775  'RGB(200, 200, 200)
Public Const gColorMidnightBlue As Long = 7346457  'RGB(25, 25, 112)
Public Const gColorPaleYellow As Long = 9298389  'RGB(213, 225, 141)

Public Const gColorCyan As Long = 16769385  'RGB(105, 225, 255)

'------------------------------------------------------------------------------
'           Draw_Moon_s4p
' send center coordinate and size
'------------------------------------------------------------------------------
Public Sub Draw_Moon_s4p(poReport As Report _
      ,pXCenter As Double _
      ,pYCenter As Double _
      ,ByVal pRadius As Double _
   ,Optional pFractionLit As Single = 1 _
   ,Optional pbWax As Boolean _
   ,Optional pnColorLight As Long = vbWhite _
   ,Optional pnColorDark As Long = vbBlack _
   ,Optional pnColorOutline As Long = gColorGray _
   )
'230209, 11
   On Error GoTo Proc_Err

   'PARAMETERs
   '  poReport = report object
   '  pXCenter, pYCenter = center of moon
   '  pRadius = radius of moon
   '  pFractionLit = fraction that is lit, 0 to 1
   '  pbWax = True if waxing (light on right)
   '          False if waning (light on left)
   '  pnColorLight = color for the lit part of moon
   '  pnColorDark = color for the dark part of moon
   '  pnColorOutline = outline color, negative is no outline

   Dim nLeftColor As Long _
      ,nRightColor As Long _
      ,nMiddleColor As Long _
      ,dbAngle1 As Double _
      ,dbAngle2 As Double _
      ,sgAspect As Single

   If pbWax = True Then  'light on the right
      nRightColor = pnColorLight
      nLeftColor = pnColorDark
   Else
      nRightColor = pnColorDark
      nLeftColor = pnColorLight
   End If
   If Abs(pFractionLit - 0.5) < 0.001 Then
      'no middle oval
   ElseIf pFractionLit > 0.5 Then
      nMiddleColor = pnColorLight
      sgAspect = 1 / ((pFractionLit - 0.5) * 2)
   Else
      nMiddleColor = pnColorDark
      sgAspect = 1 / ((0.5 - pFractionLit) * 2)
   End If

   With poReport

      .ScaleMode = 1  'twips

      .DrawWidth = 1  'iDrawWidth
      .FillStyle = 0  'Opaque


      If pFractionLit > 0.99999 Then  'full mooon
         .FillColor = pnColorLight
         poReport.Circle (pXCenter,pYCenter) _
               ,pRadius _
               ,pnColorLight
      ElseIf Abs(pFractionLit) < 0.0001 Then  'new moon
         .FillColor = pnColorDark
         poReport.Circle (pXCenter,pYCenter) _
               ,pRadius _
               ,pnColorDark
      Else
         'draw a filled half circle on the right
         dbAngle1 = gZero
         dbAngle2 = PI / 2
         .FillColor = nRightColor
         poReport.Circle (pXCenter,pYCenter) _
               ,pRadius _
               ,nRightColor _
               ,-dbAngle1,-dbAngle2
         dbAngle1 = PI * 3 / 2
         dbAngle2 = PI
         poReport.Circle (pXCenter,pYCenter) _
               ,pRadius _
               ,nRightColor _
               ,-dbAngle1,-dbAngle2
         'draw a filled half circle on the left
         dbAngle1 = PI / 2
         dbAngle2 = PI * 3 / 2
         .FillColor = nLeftColor
         poReport.Circle (pXCenter,pYCenter) _
               ,pRadius _
               ,nLeftColor _
               ,-dbAngle1,-dbAngle2
         'draw middle oval
         If Abs(pFractionLit - 0.5) > 0.001 Then
            'draw oval to cover middle
            .FillColor = nMiddleColor
            poReport.Circle (pXCenter,pYCenter) _
                  ,pRadius _
                  ,nMiddleColor _
                  ,,,sgAspect
         End If
      End If
      'draw outline
      If pnColorOutline >= 0 Then
         .FillStyle = 1  'transparent
         poReport.Circle (pXCenter,pYCenter) _
               ,pRadius _
               ,pnColorOutline
      End If
   End With  'poReport

Proc_Exit:
   On Error GoTo 0
   Exit Sub

Proc_Err:
   MsgBox Err.Description _
       ,, "ERROR " & Err.Number _
        &  "   Draw_Moon_s4p"

   Resume Proc_Exit
   Resume
End Sub

'*************** Code End *****************************************************

Goto Top

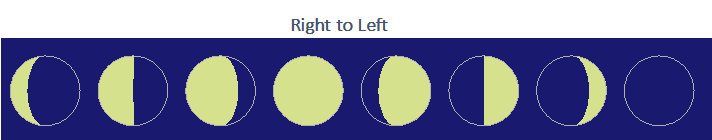

Access report with Moon phases drawn with VBA

rpt_MoonPhases_YellowBlue_row

Code behind report to draw 8 phases of the moon. Movement goes from right to left. Code opens a recordset to a table with moon data.

'*************** Code Start CBR ***********************************************
' Purpose  : code behind rpt_MoonPhases_YellowBlue_row
'              calls Draw_Moon_s4p
'              draw 8 phases of the moon
'              from right to left since movement is counter-clockwise
'              opens recordset to table with moon data
' Author   : crystal (strive4peace)
' Code List: www.msaccessgurus.com/code.htm
' This code: https://msaccessgurus.com/VBA/Draw_Moon.htm
' LICENSE  :
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Mark your changes. Use at your own risk.
'------------------------------------------------------------------------------
'           module variables
'------------------------------------------------------------------------------
Private mWidthMoon As Double _
      ,mRadiusMoon As Double
Private Const MOONsPerLine As Integer = 8   'change as desired
'------------------------------------------------------------------------------
'           PageHeaderSection_Format
'------------------------------------------------------------------------------
Private Sub PageHeaderSection_Format(Cancel As Integer,FormatCount As Integer)
'230214 strive4peace
   'calculate size of moons, maybe 8 on each line

   With Me
      .ScaleMode = 1  'twips

      '--- width and radius of each moon
      '1/2 moon spacing
      '1/4 moon left and right margin
      mWidthMoon = .ScaleWidth / _
         (MOONsPerLine + (MOONsPerLine + 1) / 4)
      'moon radius
      mRadiusMoon = mWidthMoon / 2
   End With

End Sub
'------------------------------------------------------------------------------
'           Detail_Format
'------------------------------------------------------------------------------
Private Sub Detail_Format(Cancel As Integer,FormatCount As Integer)
'230212 s4p
   On Error GoTo Proc_Err

   Dim db As DAO.Database _
      ,rs As DAO.Recordset

   Dim sSQL As String _
      ,iMoon As Integer _
      ,iLine As Integer

   Dim xCenter As Double,yCenter As Double _
      ,xStart As Double

   sSQL =  "SELECT M.Ordr" _
      &  ", M.FracLit" _
      &  ", M.PhaseName" _
      &  ", M.IsWax" _
      &  " FROM MoonPhase AS M " _
      &  " ORDER BY M.Ordr desc" _
      &  ";"

   Set db = CurrentDb
   Set rs = db.OpenRecordset(sSQL,dbOpenDynaset)

   iLine = 1
   iMoon = 1

   With Me

      'starting coordinates
      yCenter = .ScaleTop + mRadiusMoon + (mRadiusMoon / 2)
      xCenter = .ScaleLeft + mRadiusMoon + (mRadiusMoon / 4)
      xStart = xCenter

      Do While Not rs.EOF
         If iMoon Mod (MOONsPerLine + 1) = 0 Then
            iLine = iLine + 1
            yCenter = yCenter + (2 * mRadiusMoon) + (mRadiusMoon / 2)
            xCenter = xStart
         End If

         'Call Draw_Moon_s4p
         Call Draw_Moon_s4p(Me,xCenter,yCenter,mRadiusMoon _
            ,rs!FracLit,rs!IsWax,gColorPaleYellow,gColorMidnightBlue)

         'move X
         xCenter = xCenter + (2 * mRadiusMoon) + (mRadiusMoon / 2)
         iMoon = iMoon + 1
         rs.MoveNext
      Loop

   End With  'me

Proc_Exit:
   On Error Resume Next
   'release object variables
   If Not rs Is Nothing Then
      rs.Close
      Set rs = Nothing
   End If
   Set db = Nothing
   Exit Sub

Proc_Err:
   MsgBox Err.Description,,_
        "ERROR " & Err.Number _
        &  "   Detail_Format " & Me.Name

   Resume Proc_Exit
   Resume

End Sub
'*************** Code End *****************************************************

Goto Top

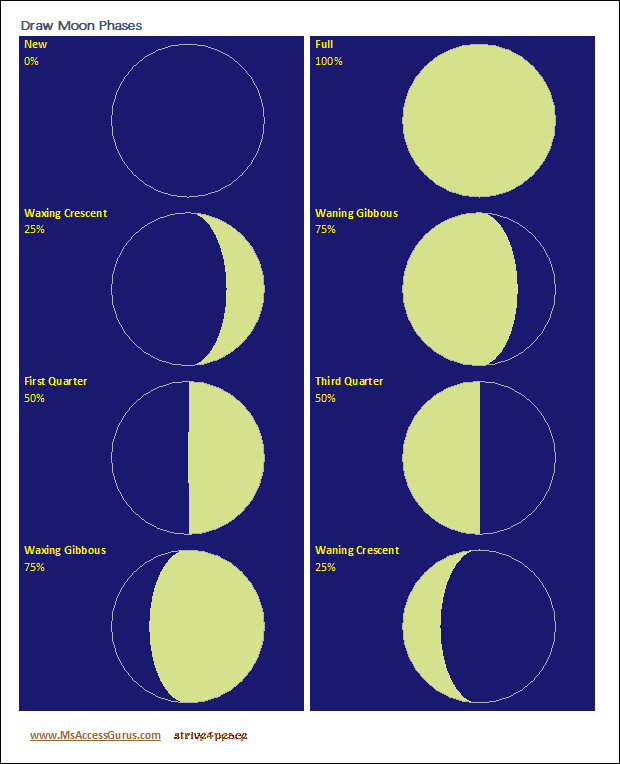

Access report with 2 columns of Moon phases

rpt_MoonPhases_Detail

Code behind report with 2 columns that is bound to a table with moon data.

'*************** Code Start CBR ***********************************************
' Purpose  : code behind rpt_Moon_Detail
'              calls Draw_Moon_s4p
'              draw the Moon in the Detail section
'              report is 2 columns
' Author   : crystal (strive4peace)
' Code List: www.msaccessgurus.com/code.htm
' This code: https://msaccessgurus.com/VBA/Draw_Moon.htm
' LICENSE  :
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Mark your changes. Use at your own risk.
'------------------------------------------------------------------------------
'           Detail_Format
'------------------------------------------------------------------------------
Private Sub Detail_Format(Cancel As Integer,FormatCount As Integer)
'230212 s4p
   Dim xCenter As Double,yCenter As Double _
      ,sgRadius As Double
   xCenter = 2.2 * TWIPperINCH
   yCenter = 1.1 * TWIPperINCH
   sgRadius = 1 * TWIPperINCH
   With Me
      'Call Draw_Moon_s4p,no outline
      Call Draw_Moon_s4p(Me,xCenter,yCenter,sgRadius _
         ,.FracLit,.IsWax,gColorPaleYellow,gColorMidnightBlue)
   End With

End Sub
'*************** Code End *****************************************************

Goto Top

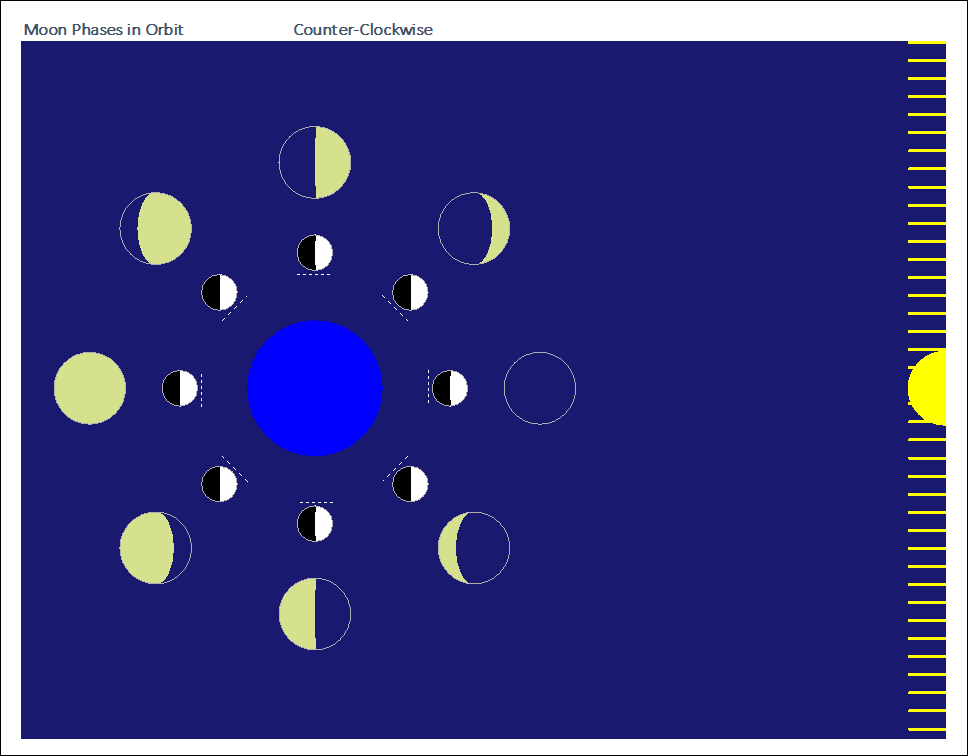

Access report with Moon  phases as they appear in the orbit

rpt_MoonPhases_Orbit

Code behind report to draw phases of the moon as they appear as they orbit around Earth. One side of the moon is always dark. Depending on where the moon is, we may see just part of it. The moon travels in a counter-clockwise direction with an orbital velocity of about 2,286 miles/hour.

Between the Earth and the Moon is a small reference moon with a dashed line for the plane we see so you can understand how the different phases appear on Earth.

'*************** Code Start CBR ***********************************************
' Purpose  : code behind rpt_MoonPhases_Orbit
'              calls Draw_Moon_s4p
'              draw Moons as we see them in orbit around Earth
'            USES Circle and Line
' Author   : crystal (strive4peace)
' Code List: www.msaccessgurus.com/code.htm
' This code: https://msaccessgurus.com/VBA/Draw_Moon.htm
' LICENSE  :
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Mark your changes. Use at your own risk.
'------------------------------------------------------------------------------
'           Report_Page
'------------------------------------------------------------------------------

Private Sub Report_Page()
'230214 strive4peace
' assume 8 records in the MoonPhase table with moon data
' measurements hard coded for landscape page

   On Error GoTo Proc_Err

   Const INCHtoTWIP As Long = 1440

   Dim db As DAO.Database _
      ,rs As DAO.Recordset

   Dim sSQL As String _
      ,iMoon As Integer _
      ,nColorSky As Long

   Dim xCenterEarth As Double,yCenterEarth As Double _
      ,xCenterMoon As Double,yCenterMoon As Double _
      ,xCenterReference As Double,yCenterReference As Double _
      ,xCenterLine As Double,yCenterLine As Double _
      ,dbDistanceMoon As Double _
      ,dbDistanceReference As Double _
      ,dbDistanceLine As Double _
      ,x1 As Double,y1 As Double _
      ,x2 As Double,y2 As Double _
      ,Y As Double _
      ,dbAngleMoon As Double _
      ,dbAngleLine As Double

   Dim dbRadiusEarth As Double _
      ,dbRadiusMoon As Double _
      ,dbRadiusReference As Double

   '--------------------- Customize
   'Earth radius
   dbRadiusEarth = 0.75 * INCHtoTWIP
   'moon radius
   dbRadiusMoon = 0.4 * INCHtoTWIP
   dbRadiusReference = dbRadiusMoon / 2
   'distance
   dbDistanceMoon = 2.5 * INCHtoTWIP
   dbDistanceReference = dbDistanceMoon * 0.6
   dbDistanceLine = dbDistanceReference - dbRadiusReference * 1.2
   'center earth
   xCenterEarth = 3.25 * INCHtoTWIP
   yCenterEarth = 4.1 * INCHtoTWIP
   nColorSky = gColorMidnightBlue
   '---------------------

   sSQL =  "SELECT M.Ordr" _
      &  ", M.FracLit" _
      &  ", M.PhaseName" _
      &  ", M.IsWax" _
      &  " FROM MoonPhase AS M " _
      &  " ORDER BY M.Ordr" _
      &  ";"

   Set db = CurrentDb
   Set rs = db.OpenRecordset(sSQL,dbOpenDynaset)

   dbAngleMoon = 0

   With Me
      .ScaleMode = 1  'twips
      .FillStyle = 0  'Opaque
      .DrawWidth = 6  'pixel
      .DrawStyle = 0  'solid

      'draw sky background
      x1 = .ScaleLeft
      x2 = .ScaleLeft + .ScaleWidth
      y1 = .ScaleTop + .PageHeaderSection.Height
      y2 = .ScaleTop + .ScaleHeight
      Me.Line (x1,y1)-(x2,y2),nColorSky,BF

      'draw sun    'rays coming from right
      'center sun will be right edge
      'sun appears to be about the same size as the moon
      .FillColor = vbYellow
      Me.Circle (x2,yCenterEarth) _
         ,dbRadiusMoon,vbYellow
      'draw sun rays from right
      x1 = x2 - dbRadiusMoon
      For Y = y1 To y2 Step dbRadiusMoon / 2
         Me.Line (x1,Y)-(x2,Y),vbYellow
      Next Y

      .DrawWidth = 1  'pixel
      .FillColor = RGB(0,0,255)

      'draw Earth
      Me.Circle (xCenterEarth,yCenterEarth) _
         ,dbRadiusEarth,RGB(0,0,255)

      'starting coordinates for Moon
      xCenterMoon = xCenterEarth + dbDistanceMoon
      yCenterMoon = yCenterEarth

      'starting coordinates for reference Moon
      xCenterReference = xCenterEarth + dbDistanceReference
      yCenterReference = yCenterEarth

      Do While Not rs.EOF

         'Call Draw_Moon_s4p
         Call Draw_Moon_s4p(Me,xCenterMoon,yCenterMoon,dbRadiusMoon _
            ,rs!FracLit,rs!IsWax,gColorPaleYellow,gColorMidnightBlue _
            )

         'reference moon
         Call Draw_Moon_s4p(Me,xCenterReference,yCenterReference _
            ,dbRadiusReference _
            ,0.5,True,vbWhite,vbBlack _
            )

         'line of sight
         .DrawStyle = 2  'dot
         dbAngleLine = dbAngleMoon + PI / 2
         xCenterLine = xCenterEarth + dbDistanceLine * Cos(dbAngleMoon)
         yCenterLine = yCenterEarth - dbDistanceLine * Sin(dbAngleMoon)
         x1 = xCenterLine + Cos(dbAngleLine) * dbRadiusReference
         y1 = yCenterLine - Sin(dbAngleLine) * dbRadiusReference
         x2 = xCenterLine - Cos(dbAngleLine) * dbRadiusReference
         y2 = yCenterLine + Sin(dbAngleLine) * dbRadiusReference
         Me.Line (x1,y1)-(x2,y2),vbWhite
         .DrawStyle = 0  'solid

         'cover back half of reference moon -- future

         'calculate next angle and center coordinates
         dbAngleMoon = dbAngleMoon + PI / 4
         xCenterMoon = xCenterEarth + dbDistanceMoon * Cos(dbAngleMoon)
         yCenterMoon = yCenterEarth - dbDistanceMoon * Sin(dbAngleMoon)

         xCenterReference = xCenterEarth + dbDistanceReference * Cos(dbAngleMoon)
         yCenterReference = yCenterEarth - dbDistanceReference * Sin(dbAngleMoon)

         rs.MoveNext
      Loop

   End With  'me

Proc_Exit:
   On Error Resume Next
   'release object variables
   If Not rs Is Nothing Then
      rs.Close
      Set rs = Nothing
   End If
   Set db = Nothing
   Exit Sub

Proc_Err:
   MsgBox Err.Description,,_
        "ERROR " & Err.Number _
        &  "   Report_Page " & Me.Name

   Resume Proc_Exit
   Resume

End Sub
'*************** Code End *****************************************************
' Code was generated with colors using the free Color Code add-in for Access.

Goto Top

Reference

Drawing Reference on MsAccessGurus

Report Draw Reference for VBA syntax and help for drawing on Access reports.

Circle method

DrawWidth property

DrawStyle property

FillColor property

FillStyle property

ScaleMode property

ScaleWidth property

ScaleHeight property

ScaleLeft property

ScaleTop property

Sine function

Cosine function

Goto Top

Backstory

The moon has been keeping me up … instead of sleeping, I want to get up and draw moons!

It was a little tricky figuring out how to make the crescents. Two half circles are drawn, then an oval is drawn on top

Not so easy to get an equation for the moon's positoin because the moon is spinning and revolving around Earth, Earth is spinning and revolving around the sun, and even the sun and our whole solar system is revolving around the big black hole in the Milky Way

Next I want to integrate Moon phases with my CalendarMaker ... sometime!

VBA drawing code with links to more pages with code to draw on your Access reports. If you can imagine it, Access can do it!

If you like this page, please let me know. Donations mean a lot, thank you

Share with others

Here's the link for this page in case you want to copy it and share it with someone:

https://msaccessgurus.com/VBA/Draw_Moon.htm

or in old browsers:
http://www.msaccessgurus.com/VBA/Draw_Moon.htm

Get Tutoring with Access and drawing

Let's connect and team-develop your application together. I teach you how to do it yourself. My goal is to empower you.

While we build something great together, I'll pull in code and features from my vast libraries as needed, cutting out lots of development time. I'll give you lots of links to good resources.

Do you want your reports to be more creative and visual? I'd love to help you. Email me at training@msAccessGurus.com

~ crystal

the simplest way is best, but usually the hardest to see

Goto Top
