Draw a Stoplight in Access

Draw Stoplights showing showing whatever color you want emphasized on your Access reports ... Green, Yellow, Red. VBA procedure that's easy to call from code behind your reports. VBA procedure that's easy to call from code behind your reports. Access can draw complex objects using a few simple methods.

Send the report object, any control to get position and maximum height/width (labels okay), and value (1=green, 2=yellow, 3=red) so Access can draw a Stoplight displaying the color (if any) that you desire, and where you want it to be.

The code that does the drawing is all in one module that you can easily import into your projects. Although the drawing is complex, it only uses the Circle and Line methods. The VBA code is open so you can learn how it's done.

DevCon
April 27 + 28 (Thursday + Friday), 2023

Do you want to participate in a presentation about drawing on Access reports? Come to Access DevCon, a huge annual Access conference open to the world, organized by Karl Donaubauer with help from Peter Doering and Philipp Stiefel. Here are the speakers: Access DevCon Agenda.

Join me, Access experts, and developers who love Access. I'm presenting Draw Gadgets on Access Reports and would be happy to see you. It's virtual, so you can join from anywhere! Register for DevCon

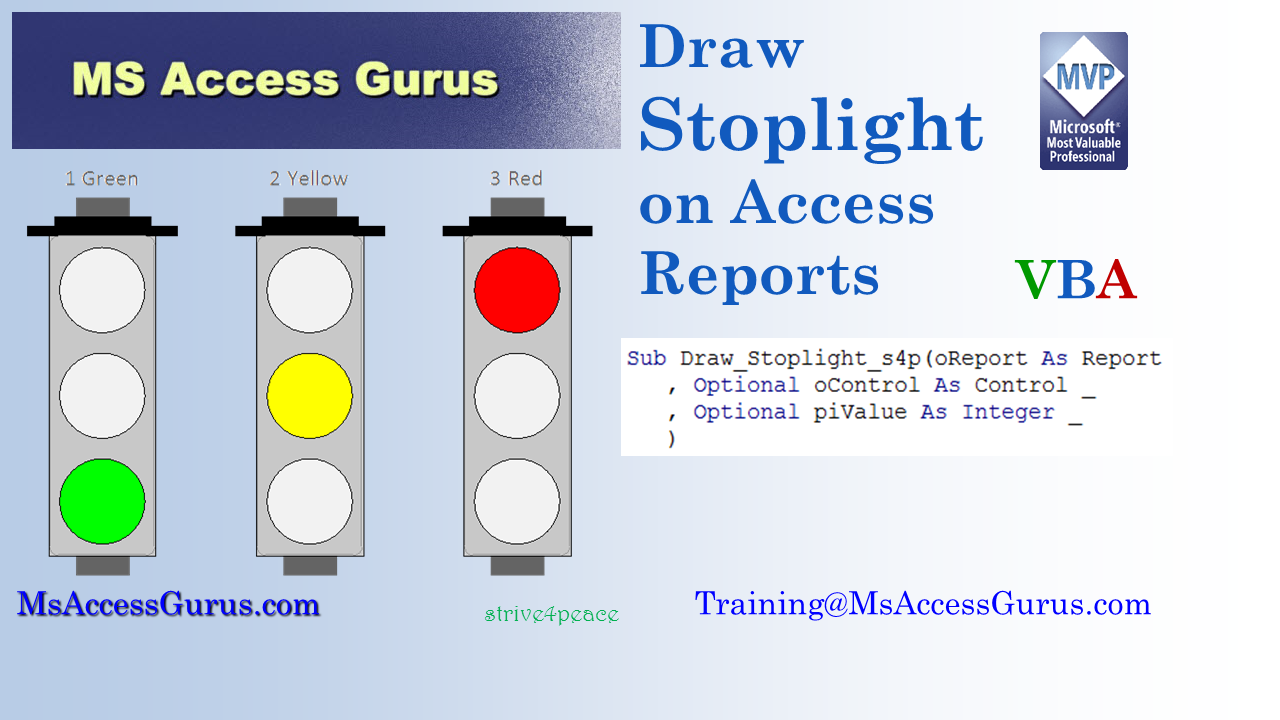

Show a Stoplight on an Access report

Quick Jump

Goto Top


Download

Download zipped BAS file you can import into your Access projects: mod_Draw_Stoplight_s4p.zip

Download zipped ACCDB file with a sample sample report, and module: DrawStopLight__ACCDB.zip

Remember to UNBLOCK files you download to remove the Mark of the Web. Here are steps to do that: https://msaccessgurus.com/MOTW_Unblock.htm

Goto Top

Try it yourself

There is one sample report. Read comments to see how to use your data.

Goto Top

VBA

Standard module

Specify report object, a control to determine boundaries, and a value from 1 to 3 for which light (green, yellow, red) that you want to show. If value isn't sent,or value isn't 1-3, empty circles for the lights will show.

'*************** Code Start *****************************************************
' module: mod_Draw_Stoplight_s4p
'-------------------------------------------------------------------------------
' Purpose  : Draw a Stoplight on an Access report
'              draw within the boundaries of a control that you specify (can be a Label)
'              value: 1=green, 2=yellow, 3=red
' Author   : crystal (strive4peace)
' License  : below code
' Code List: msaccessgurus.com/code.htm
' This code: http://msaccessgurus.com/VBA/Code/DrawStoplight.htm
'-------------------------------------------------------------------------------
'           public variables
'-------------------------------------------------------------------------------
'comment if set elsewhere

Public gXCenter As Single,gYCenter As Single _
      ,gRadius As Single

Public gXLeft As Single,gYTop As Single _
   ,gXWidth As Single,gYHeight As Single

Public gvValue As Variant

Public Const PI As Double = 3.14159

'-------------------------------------------------------------------------------
'           Draw_Stoplight_s4p
'-------------------------------------------------------------------------------
Sub Draw_Stoplight_s4p(oReport As Report _
   ,oControl As Control _
   ,Optional piValue As Integer _
   )
'piValue: 1=green, 2=yellow, 3=red

   'CALLs
   '  ReadScale
   '  SetCenter
   '  Draw_RectangleRounded

   Dim x1 As Single,y1 As Single _
      ,x2 As Single,y2 As Single _
      ,yEndHeight As Single _
      ,sgMargin As Single _
      ,sgRatioLight As Single _
      ,iDrawWidth As Integer _
      ,nColor As Long

   Dim nColorGreen As Long _
      ,nColorYellow As Long _
      ,nColorRed As Long _
      ,nColorOff As Long _
      ,nColorBorder As Long _

   On Error GoTo Proc_Err

   'get boundaries

   Call ReadScale(oControl,False)

   '------------------------ height of each end cap and roof
   yEndHeight = gYHeight / 20

   'adjust top and bottom cap+roof on top
   '  and cap on bottom
   gYTop = gYTop + 2 * yEndHeight
   gYHeight = gYHeight - 3 * yEndHeight

   Call SetCenter(1,3)  'set gXCenter, gYCenter, gRadius


   '------------------------ percent for light radius
   sgRatioLight = 0.8

   nColorGreen = RGB(0,255,0)
   nColorYellow = RGB(255,255,0)
   nColorRed = RGB(255,0,0)
   nColorOff = RGB(242,242,242)
   nColorBorder = 0

   sgMargin = 12

   If gXWidth < (gYHeight / 3) Then
      'center horizontally
'      gRadius = gXWidth / 2 - sgMargin
      x1 = gXLeft
      x2 = gXLeft + gXWidth
      'move it down for the top stuff
      y1 = gYCenter - 3 * gRadius
      y2 = gYCenter + 3 * gRadius

   Else
      'center vertically
'      gRadius = gYHeight / 6 -  * sgMargin
      x1 = gXCenter - gRadius
      x2 = gXCenter + gRadius
      y1 = gYTop
      y2 = gYTop + gYHeight
   End If

   With oReport
      .ScaleMode = 1  'twips

      '--- draw top
      .DrawWidth = 1
      'gray dome on top and bottom
      .FillStyle = 0  'Opaque
'      .FillColor = RGB(200, 200, 200)
      '-- top
      oReport.Line (gXCenter - gRadius * 0.5 _
         ,gYTop - 2 * yEndHeight _
         )-(gXCenter + gRadius * 0.5 _
         ,gYTop - yEndHeight) _
         ,RGB(100,100,100) _
         ,BF
      '-- bottom
      oReport.Line (gXCenter - gRadius * 0.5 _
         ,gYTop + gYHeight _
         )-(gXCenter + gRadius * 0.5 _
         ,gYTop + gYHeight + yEndHeight) _
         ,RGB(100,100,100) _
         ,BF

      '--- black roof
'      .FillColor = 0
      oReport.Line (gXCenter - gRadius * 0.9 _
         ,gYTop - yEndHeight _
         )-(gXCenter + gRadius * 0.9 _
         ,gYTop - yEndHeight * 0.5) _
         ,0 _
         ,BF

      oReport.Line (gXCenter - gRadius * 1.4 _
         ,gYTop - yEndHeight * 0.5 _
         )-(gXCenter + gRadius * 1.4 _
         ,gYTop) _
         ,0 _
         ,BF

      '--- draw frame
      iDrawWidth = 5  'pixel
      .DrawWidth = iDrawWidth

      'gray filled box behind
      .FillStyle = 0  'Opaque
      .FillColor = RGB(200,200,200)
      oReport.Line (x1,y1)-(x2,y2) _
         ,RGB(200,200,200) _
         ,B

      'Black border box
      .FillStyle = 1  'Transparent
      oReport.Line (x1,y1)-(x2,y2),0,B

      'Draw_RectangleRounded
      x1 = x1 + iDrawWidth * 2
      x2 = x2 - iDrawWidth * 3
      y1 = y1 + iDrawWidth  '* 1.5
      y2 = y2 - iDrawWidth * 3

      'DrawWidth=3
      Call Draw_RectangleRounded(oReport _
         ,x1,y1,x2,y2 _
         ,3,RGB(150,150,150))

      '~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ lights

      y1 = gYCenter + 2 * gRadius - sgMargin  'bottom - green
      y2 = gYCenter - 2 * gRadius + sgMargin  'top - red

      .FillStyle = 0  'Opaque
      .DrawWidth = 1

      '--- GREEN, bottom
      If piValue = 1 Then
         nColor = nColorGreen
      Else
         nColor = nColorOff
      End If
      .FillColor = nColor
      oReport.Circle (gXCenter,y1) _
            ,gRadius * sgRatioLight _
            ,nColorBorder

      '--- YELLOW, middle
      If piValue = 2 Then
         nColor = nColorYellow
      Else
         nColor = nColorOff
      End If
      .FillColor = nColor
      oReport.Circle (gXCenter,gYCenter) _
            ,gRadius * sgRatioLight _
            ,nColorBorder


      '--- RED, top
      If piValue = 3 Then
         nColor = nColorRed
      Else
         nColor = nColorOff
      End If
      .FillColor = nColor
      oReport.Circle (gXCenter,y2) _
            ,gRadius * sgRatioLight _
            ,nColorBorder


   End With

Proc_Exit:
   On Error Resume Next
   Exit Sub

Proc_Err:
   MsgBox Err.Description _
       ,, "ERROR " & Err.Number _
        &  "   Draw_Stoplight_s4p"

   Resume Proc_Exit
   Resume
End Sub
'-------------------------------------------------------------------------------
'           ReadScale
'-------------------------------------------------------------------------------

Public Sub ReadScale(oControl As Control _
   ,Optional pbGetValue As Boolean = False)
'220618 s4p
'read control Scale, set global variables
'first step
   With oControl
      gXLeft = .Left
      gYTop = .Top
      gXWidth = .Width
      gYHeight = .Height
      gvValue = Null
      If pbGetValue <> False Then
         If Not IsNull(.Value) Then
            gvValue = .Value
         End If
      End If
   End With
End Sub

'-------------------------------------------------------------------------------
'           SetCenter
'-------------------------------------------------------------------------------
Public Sub SetCenter( _
   Optional piQtyX As Integer = 1 _
   ,Optional piQtyY As Integer = 1 _
   )
'220618 strive4peace
'calculate gXCenter, gYCenter, gRadius
'  from global variables
'optionally, send number of objects if not 1
'  such as Stoplight has piQtyY=3

   gXCenter = gXLeft + gXWidth / 2
   gYCenter = gYTop + gYHeight / 2

   If gXWidth / piQtyX < gYHeight / piQtyY Then
      gRadius = gXWidth / piQtyX / 2
   Else
      gRadius = gYHeight / piQtyY / 2
   End If
End Sub

'-------------------------------------------------------------------------------
'           Draw_RectangleRounded
'-------------------------------------------------------------------------------
Sub Draw_RectangleRounded(oReport As Report _
   ,xLeft As Single _
   ,yTop As Single _
   ,xRight As Single _
   ,yBottom As Single _
   ,Optional piDrawWidth As Integer = 1 _
   ,Optional pnColor As Long = 9868950 _
   ,Optional psgRadiusCorner As Single = 80 _
   )

'use Line to draw lines
'Circle to draw arcs for corners
'9868950=rgb(150,150,150)
   Dim x1 As Single,y1 As Single _
      ,x2 As Single,y2 As Single

   x1 = xLeft
   x2 = xRight
   y1 = yTop + psgRadiusCorner
   y2 = yBottom - psgRadiusCorner

   oReport.DrawWidth = piDrawWidth

   '--- sides
   'left side
   oReport.Line (x1,y1)-(x1,y2),pnColor
   'right side
   oReport.Line (x2,y1)-(x2,y2),pnColor

   x1 = xLeft + psgRadiusCorner
   x2 = xRight - psgRadiusCorner
   y1 = yTop
   y2 = yBottom

   'top
   oReport.Line (x1,y1)-(x2,y1),pnColor
   'bottom
   oReport.Line (x1,y2)-(x2,y2),pnColor

   '--- corners

   x1 = xLeft + psgRadiusCorner
   y1 = yTop + psgRadiusCorner

   '--------------------------------- 'todo: test for big dimensions
   'adjust centers for line width
   x2 = xRight - psgRadiusCorner _
      + piDrawWidth * 2

   y2 = yBottom - psgRadiusCorner _
      + piDrawWidth * 2

   'top left corner
   oReport.Circle (x1,y1),psgRadiusCorner _
      ,pnColor,PI / 2,PI
   'top right corner
   oReport.Circle (x2,y1),psgRadiusCorner _
      ,pnColor,0,PI / 2

   'bottom left corner
   oReport.Circle (x1,y2 + piDrawWidth),psgRadiusCorner _
      ,pnColor,PI,3 / 2 * PI
   'bottom right corner
   oReport.Circle (x2,y2),psgRadiusCorner _
      ,pnColor,3 / 2 * PI,2 * PI


End Sub

'*************** Code End *******************************************************

Call from code behind report

Instead of using actual data, this code loops though the 3 values (1=green, 2=yellow, 3=red) ... but hopefully you get the gist

'-------------------------------------------------------------------------------
'           Detail_Format
'-------------------------------------------------------------------------------
Private Sub Detail_Format(Cancel As Integer,FormatCount As Integer)
'230408
   Dim i As Integer _
      ,sControlname As String _
      ,iValue As Integer
   For i = 1 To 3
      sControlname =  "Label" & i
      iValue = i
'      Call Draw_Stoplight_s4p(Me, Me(sControlname), iValue)
      Call Draw_Stoplight_s4p(Me,Me(sControlname),iValue)
   Next i
End Sub
Code was generated with colors using the free Color Code add-in for Access

Goto Top

Reference

Drawing Reference on MsAccessGurus

Report Draw Reference for VBA syntax and help for drawing on Access reports.

Circle method

Line method

DrawWidth property

FillColor property

FillStyle property

ScaleMode property

Goto Top

Backstory

Stoplights are easy to recognize. Using graphics to indicate values makes them easier to see ... a picture is worth a thousand words
