Word Field Shading

Quick Jump

Download

Download zipped BAS file you can import into your VBA projects: mod_Word_FieldShading_s4p__BAS.zip

Remember to UNBLOCK files you download to remove the Mark of the Web. Here are steps to do that: https://msaccessgurus.com/MOTW_Unblock.htm

VBA

Standard module

If this code is in your Normal template, you can call it from anywhere

'*************** Code Start *****************************************************
' module name: mod_Word_FieldShading_s4p
'-------------------------------------------------------------------------------
' Purpose  : change field shading of ActiveWindow view in Word
' Author   : crystal (strive4peace)
' Code List: https://msaccessgurus.com/code.htm
' This code: https://msaccessgurus.com/VBA/Word_FieldShading.htm
' LICENSE  :
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Use at your own risk.
'-------------------------------------------------------------------------------
'   wdFieldShadingNever = 0
'   wdFieldShadingAlways = 1
'   wdFieldShadingWhenSelected = 2
'-------------------------------------------------------------------------------
'                       aFieldShading_ALWAYS
'-------------------------------------------------------------------------------
Public Sub aFieldShading_ALWAYS()
'230321 strive4peace
   ActiveDocument.ActiveWindow.View.FieldShading = 1
End Sub
'-------------------------------------------------------------------------------
'                       aFieldShading_SELECTED
'-------------------------------------------------------------------------------
Public Sub aFieldShading_SELECTED()
'230321 strive4peace
   ActiveDocument.ActiveWindow.View.FieldShading = 2
End Sub
'-------------------------------------------------------------------------------
'                       aFieldShading_NO
'-------------------------------------------------------------------------------
Public Sub aFieldShading_NO()
'230321 strive4peace
   ActiveDocument.ActiveWindow.View.FieldShading = 0
End Sub
'*************** Code End *******************************************************

Steps to set Field Shading in Word Options

To change how fields are displayed using the Word Options:

1. Go to Word Options
2. Choose Advanced
3. Scroll to the Show document content section
4. Choose what you want in the list for Field shading


5. Click OK

Assign Shortcut Keys

You can assign shortcut keys to public Subs.

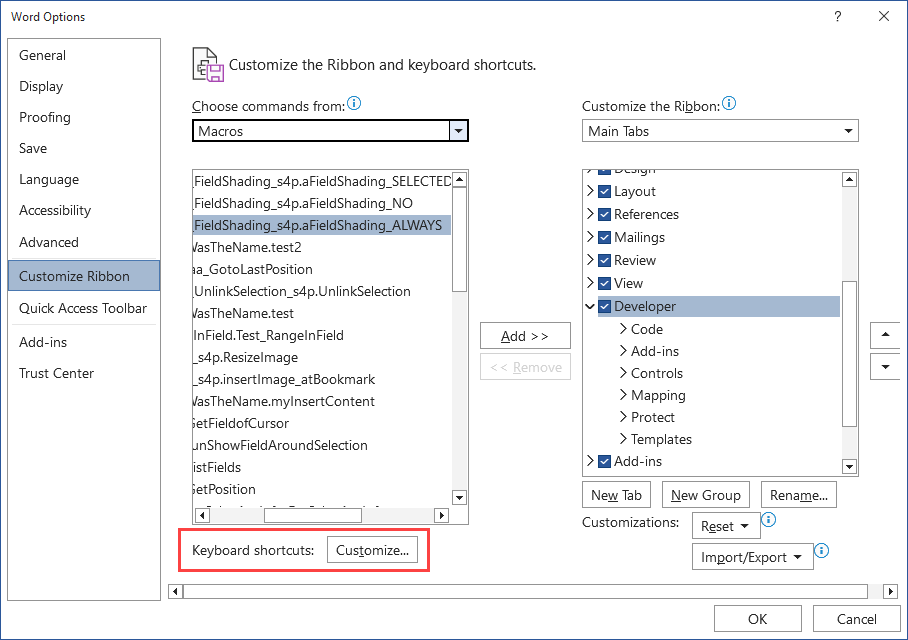

1. Go to Word Options
2. Choose Customize Ribbon (not an intuitive thing to choose to customize the keyboard ... but this is where it is)
3. Click the Customize... button next to Keyboard shortcuts in the lower left or press Alt-t

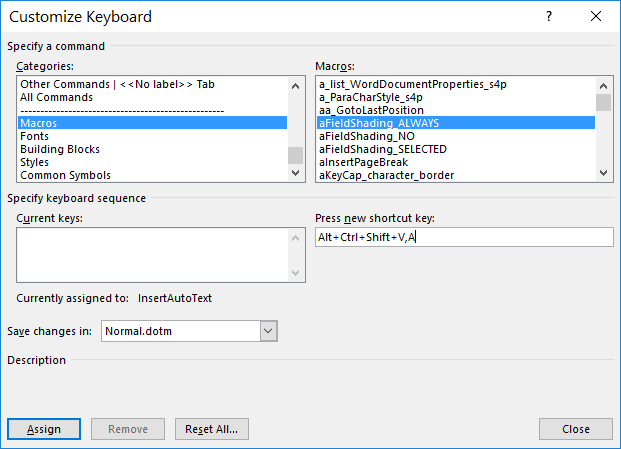

4. In the Customize Keyboard dialog box that pops up, under Categories, choose Macros
5. In the Macros list, choose the macro you want
6. Click in the Press new shortcut key box or press Alt-n
7. Press the keys you want to use
8. The default place to Save changes in will probably be the Normal template -- change this if desired
9. Click the Assign command button in the lower left or press Alt-a


10. Assign more shortcuts if you want and then Close the dialog box.

Reference

Microsoft

View.FieldShading property (Word)

View object (Word)

With the view object, you can set other properties such as zoom, bookmarks, comments, field codes, and a lot more.

Ms Access Gurus

Word Automation VBA Code

Backstory

When you're working with fields in Word, it's several clicks to go back and forth between the display choices using Word's options.

This code is easy to add to your Normal template so you can use it for any document. Press Alt-F8 for a list of macros and choose what you want to run. I generally begin the name the procedures I'll call a lot with a little 'a' so they sort at the top of the list.

If you want to make it even quicker, assign shortcut keys.
